Zirkon – PEEK & Friktionselemente

In diesem Fall wollte unser Kollege Paul Giezendanner (Schweiz) auf „Nummer-Sicher“ gehen.

Daher wurde geplant, zusätzliche Friktionselemente in die endständigen Teleskope einzuarbeiten.

The primary telescopes were milled at a minimum thickness of 0.3 mm. Sharp edges in the occlusal area must be avoided in any case.

The primary telescopes were milled at a minimum thickness of 0.3 mm. Sharp edges in the occlusal area must be avoided in any case.
Even in the palatal design of the primary telescopes the minimum thickness has been complied with 0.3mm.

Even in the palatal design of the primary telescopes the minimum thickness has been complied with 0.3mm.
At the canines a stage was conducted higher and created with a flat wall in order to allow the incorporation of the friction elements.

At the canines a stage was conducted higher and created with a flat wall in order to allow the incorporation of the friction elements.

Da die Primärteleskope sehr dünn und grazil gestaltet werden müssen, um eine ansprechende Ästhetik erzielen zu können, dürfen diese Teleskope nicht mit Teleskopzangen gehalten werden. Zur Herstellung und Bearbeitung der Sekundärteleskope werden Kunststoffstümpfe aus Pattern Resin hergestellt. Diese können bei Bedarf mit einem kleinen Tropfen Sekundenkleber in den Teleskopen fixiert werden. Zum Lösen des Kunststoffstumpfes aus dem Innenteleskop kann ein Heissluft-Stift verwendet werden. Durch die Erwärmung löst sich die Klebeverbindung und die Zirkonkrone kann vom Stumpf gelöst werden.

Detailed view of the placeholder for the friction parts in the outer telescope.

Detailed view of the placeholder for the friction parts in the outer telescope.
Detailed view of the friction element from the lingual. To use the function of this friction element fully, these surfaces must completely abut each other.

Detailed view of the friction element from the lingual. To use the function of this friction element fully, these surfaces must completely abut each other.
Detailed view of the friction from the occlusal. A screw from the basal side of this element can be subsequently activated selectively.

Detailed view of the friction from the occlusal. A screw from the basal side of this element can be subsequently activated selectively.
In this picture we see the primary telescopes with SiTec. These were glued for the photo to illustrate the mode of operation.

In this picture we see the primary telescopes with SiTec. These were glued for the photo to illustrate the mode of operation.
Even before the try in of the primary parts, the secondary telescopes are created on the zirkonium-telescopes to cement the primarys immediately.

Even before the try in of the primary parts, the secondary telescopes are created on the zirkonium-telescopes to cement the primarys immediately.
Secondary telescopes ready for pick-up impression. The high demands on the precise fit make it imperative to customize this cap on the original primary parts and to make the pic-up-impression after their cementing .

Secondary telescopes ready for pick-up impression. The high demands on the precise fit make it imperative to customize this cap on the original primary parts and to make the pic-up-impression after their cementing .

Meine ersten teleskopierenden Arbeiten mit Sekundärteilen aus PEEK habe ich vor gut 3 Jahren angefertigt und bisher ist bei keinem dieser Patienten ein Friktionsverlust aufgetreten.
Durch das zusätzliche Einfügen der schraubaktivierbaren Friktionselemente, welche bei der ersten Eingliederung inaktiv bleiben und als „Schläfer“ wirken, kann jedoch der Halt nachträglich erhöht werden.
Somit wird jeglichem Friktionsverlust, vorgebeugt.

Temporary bridge framework from multicolor PMMA front view. By using multicolor Blanks veneering can be saved and yet an aesthetic result can be achieved.

Temporary bridge framework from multicolor PMMA front view. By using multicolor Blanks veneering can be saved and yet an aesthetic result can be achieved.
Because the Zirkonium-telescopes will be cemented during the first try-in, a provisional arrangement is needed that dent patient care through to completion.

Because the Zirkonium-telescopes will be cemented during the first try-in, a provisional arrangement is needed that dent patient care through to completion.
View details of PMMA temporary palatal. These milled temporary restorations are much more stable, as polymerized structures.

View details of PMMA temporary palatal. These milled temporary restorations are much more stable, as polymerized structures.

Durch das sofortige Zementieren der Primärteleskope wird vermieden, dass diese im Verlauf der weiteren Arbeit beschädigt werden können. Ausserdem stellen wir durch die Überabformung einen passiven Sitz der definitiven Arbeit sicher.
Noch sicherer wäre die direkte Verklebung von Sekundärteleskopen und Metallgerüst im Mund.

Die folgenden Bilder zeigen die Modelle, hergestellt im Labor von Paul Giezendanner und das weitere Vorgehen nach der Überabformung :

These very smooth stumps are made of epoxy resin to simulate the surfaces of the primary telescopes. The gingival mask represents the gingival situation.

These very smooth stumps are made of epoxy resin to simulate the surfaces of the primary telescopes. The gingival mask represents the gingival situation.
Because the gingival mask sometimes even extends beyond the primary parts, it must be reduced for further processing to prevent no disturb the seat of secondary telescopes and to permit the production of the model casting.

Because the gingival mask sometimes even extends beyond the primary parts, it must be reduced for further processing to prevent no disturb the seat of secondary telescopes and to permit the production of the model casting.
Giezendanner 4

Im Bereich des Gaumens kann man die Einlagerung der bisherigen Versorgung erkennen. Da der Patient sich über viele Jahre hinweg an diese Form gewöhnt hat, werden wir diese auch beibehalten.#

For the aesthetic try-in a template of light-curing tray material and plastic teeth or facets was prepared by Paul Giezendanner.

For the aesthetic try-in a template of light-curing tray material and plastic teeth or facets was prepared by Paul Giezendanner.
With this template, both the jaw relation as well as the desired aesthetic can be checked and transferred.

With this template, both the jaw relation as well as the desired aesthetic can be checked and transferred.
Such a hard mask there in completions any inaccuracies due to incorrect transfer of the jaw relationship and troublesome grinding work are excluded. These are benefits for the patient, the dentist and the laboratory.

Such a hard mask there in completions any inaccuracies due to incorrect transfer of the jaw relationship and troublesome grinding work are excluded. These are benefits for the patient, the dentist and the laboratory.
In view of the palatal the difficulty of the deep bite is only fully visible. The lower incisors bite even when the bite is blocked almost to the incisive papilla. The support at 27 to make contact to the mandible

In view of the palatal the difficulty of the deep bite is only fully visible. The lower incisors bite even when the bite is blocked almost to the incisive papilla. The support at 27 to make contact to the mandible
The working model is prepared for the doubling. The edges of the metal-frame were already slightly etched to permit a gentle storage. This avoids that leftovers can press under the partial denture.

The working model is prepared for the doubling. The edges of the metal-frame were already slightly etched to permit a gentle storage. This avoids that leftovers can press under the partial denture.
The saddles classic hollowed and the PEEK caps are basal fixed with wax. The surface of the implant mask is coated with a thin layer of wax, so that does not connect with the Doublicate mass. All undercuts are blocked out as usual. Interdental spaces between the PEEK caps were pulled higher, since no steel version is desired.

The saddles classic hollowed and the PEEK caps are basal fixed with wax. The surface of the implant mask is coated with a thin layer of wax, so that does not connect with the Doublicate mass. All undercuts are blocked out as usual. Interdental spaces between the PEEK caps were pulled higher, since no steel version is desired.
The recovered from duplicating investment model. On this model the model casting, including the bite blocks is modeled for the lower jaw. For this must be an exact transfer of the jaw relationship for modeling.

The recovered from duplicating investment model. On this model the model casting, including the bite blocks is modeled for the lower jaw. For this must be an exact transfer of the jaw relationship for modeling.
For this transfer, a silicone key will be made in the articulator with the blocked out master model.

For this transfer, a silicone key will be made in the articulator with the blocked out master model.
This silicone key is cut cleanly and can be transferred to the investment model now.

This silicone key is cut cleanly and can be transferred to the investment model now.
Now, both the investment model as well as the opposing jaw for modeling are in the correct position screwed into a Galetti articulator and the bite blocks can be modeled clean.

Now, both the investment model as well as the opposing jaw for modeling are in the correct position screwed into a Galetti articulator and the bite blocks can be modeled clean.
Modelling of the model casting on the clamped investment model. Using the Galetti articulator the bite blocks can be accurately modeled.

Modelling of the model casting on the clamped investment model. Using the Galetti articulator the bite blocks can be accurately modeled.
The PEEK caps be taken physically with wings of approximally ago. This leaves plenty of room for the veneers and we get enough retention for bonding.

The PEEK caps be taken physically with wings of approximally ago. This leaves plenty of room for the veneers and we get enough retention for bonding.
Contouring met and tears in the Galetti articulator seen from the palatal. The jaw relationship was again lowered maximum.

Contouring met and tears in the Galetti articulator seen from the palatal. The jaw relationship was again lowered maximum.
Model casting after finishing basal-frontal. In the holders of secondary telescopes additional notches have been incorporated for retention.

Model casting after finishing basal-frontal. In the holders of secondary telescopes additional notches have been incorporated for retention.
Model casting before bonding on the model. The secondary telescopes are safe and free of gaps included.

Model casting before bonding on the model. The secondary telescopes are safe and free of gaps included.
Here the bonded secondary structure on the model. The shares to be issued and the retentions were sandblasted beforehand and splices conditioned according to our instructions.

Here the bonded secondary structure on the model. The shares to be issued and the retentions were sandblasted beforehand and splices conditioned according to our instructions.
The bonded structure of basal. The overhanging PEEK edges that were modeled to deep beneath the gingiva have been revised along with the model casting.

The bonded structure of basal. The overhanging PEEK edges that were modeled to deep beneath the gingiva have been revised along with the model casting.
About one fixed to the lower jaw silicone key with the bite-impressions of the situation model the space will be controlled.

About one fixed to the lower jaw silicone key with the bite-impressions of the situation model the space will be controlled.

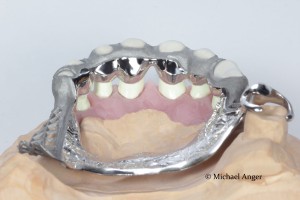

Der Modellguss nach dem Verkleben beim Aufsetzen auf das Modell. Friktion vom ersten Moment an.

Der Modellguss nach dem Verkleben beim Aufsetzen auf das Modell. Friktion vom ersten Moment an.
Die Teleskope laufen sanft in die Endposition. Bei diesem Material gibt es viel weniger

Die Teleskope laufen sanft in die Endposition. Bei diesem Material gibt es viel weniger
Frontale Aufbisse in der Detailansicht. An diesen Stellen wäre die Verblendung anderenfalls ständig beschädigt worden.

Frontale Aufbisse in der Detailansicht. An diesen Stellen wäre die Verblendung anderenfalls ständig beschädigt worden.
Completion of the partial denture from basal.

Completion of the partial denture from basal.
Detailed view of the completion after the veneering.

Detailed view of the completion after the veneering.
The finished veneers of vestibular.

The finished veneers of vestibular.
The finished model casting in the Palatal view with bite-stops in metal.

The finished model casting in the Palatal view with bite-stops in metal.
The finished prosthesis slides from the first landing down to adjust gently sliding without tilting.

The finished prosthesis slides from the first landing down to adjust gently sliding without tilting.
View details of composite veneers view from the left macro.

View details of composite veneers view from the left macro.
View details of composite veneers frontal.

View details of composite veneers frontal.
View details of composite veneers left side view on the model.

View details of composite veneers left side view on the model.
View details of composite veneers view from the left.

View details of composite veneers view from the left.
View details of composite veneers view from the right.

View details of composite veneers view from the right.





Da die Größe der Seitenzähne den Verblendungen nicht angemessen war, wurden diese nach der Fertigstellung nochmals von Paul Giezendanner ausgetauscht.
Leider stehen mir  keine Bilder der geänderten Arbeit zu Verfügung.
Ich hoffe, dass Ihnen dieser Bericht gefallen hat.

http://www.ma-fraeszentrum.de/

Michael Anger
